Freeze-Drying

Information

Freeze-drying or lyophilization is a necessary and common process for manufacturing of high-quality products. It finds its most applications in food and pharmaceutical industries for both, thermally and mechanically sensitive materials. Examples for commercially available freeze-dried products are fruits, coffee, meat and fish, as well as vaccines, antibiotics, and antibodies.

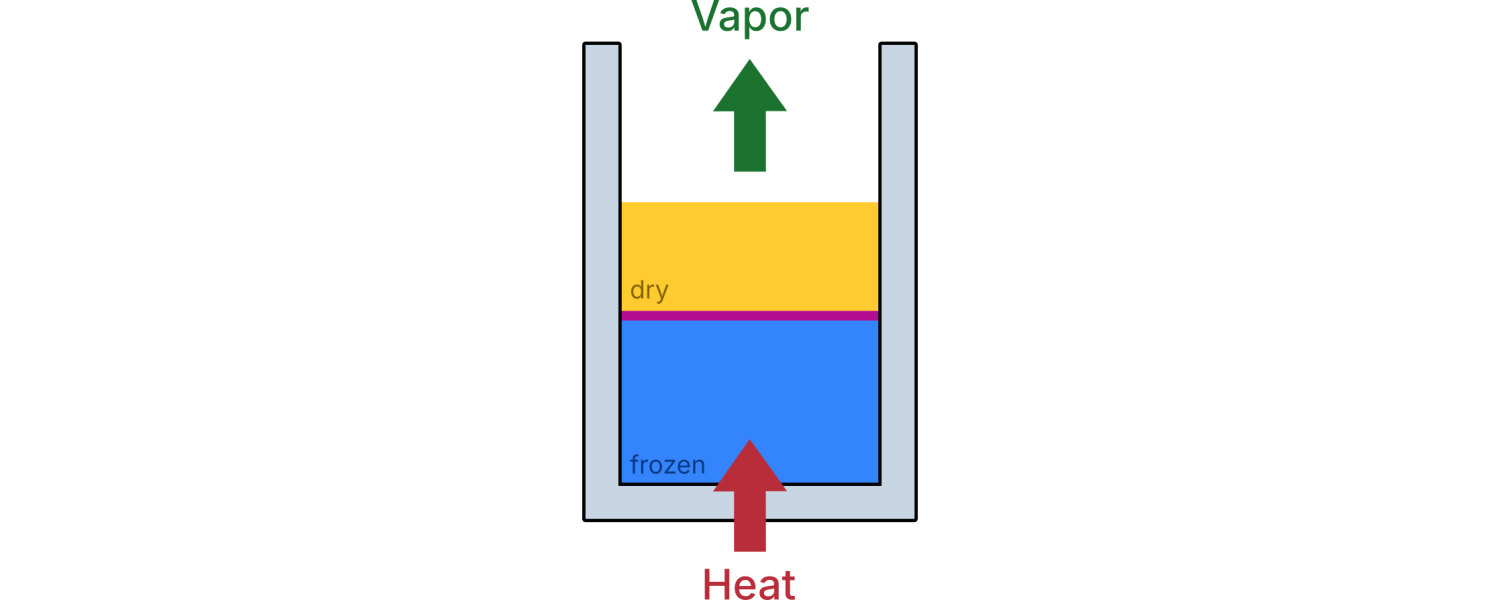

In short, the process of freeze-drying starts with freezing of the product to temperatures of about −20 °C up to −60 °C. During this step, water insides the pore space of the product turns from liquid into solid state. In a next step, the frozen product is placed into vacuum with pressures well below 100 Pa, which initiates the primary freeze-drying period. Frozen water, i.e. ice, turns directly from solid state into water vapor by sublimation. This phase transition demands comparably much heat, i.e. around 2.8 MJ/kg, which has to be supplied externally. In order to prevent product damage, the heat supply is limited by several safety parameters, e.g. collapse temperature.

Vial_FD_Process

This makes the process slow and expensive. Attempts to increase efficiency quickly bring the process into areas where the solid structure of the product can soften and collapse. Such damaging events are always local and therefore cannot be captured by continuum models, which are limited in their informative value.

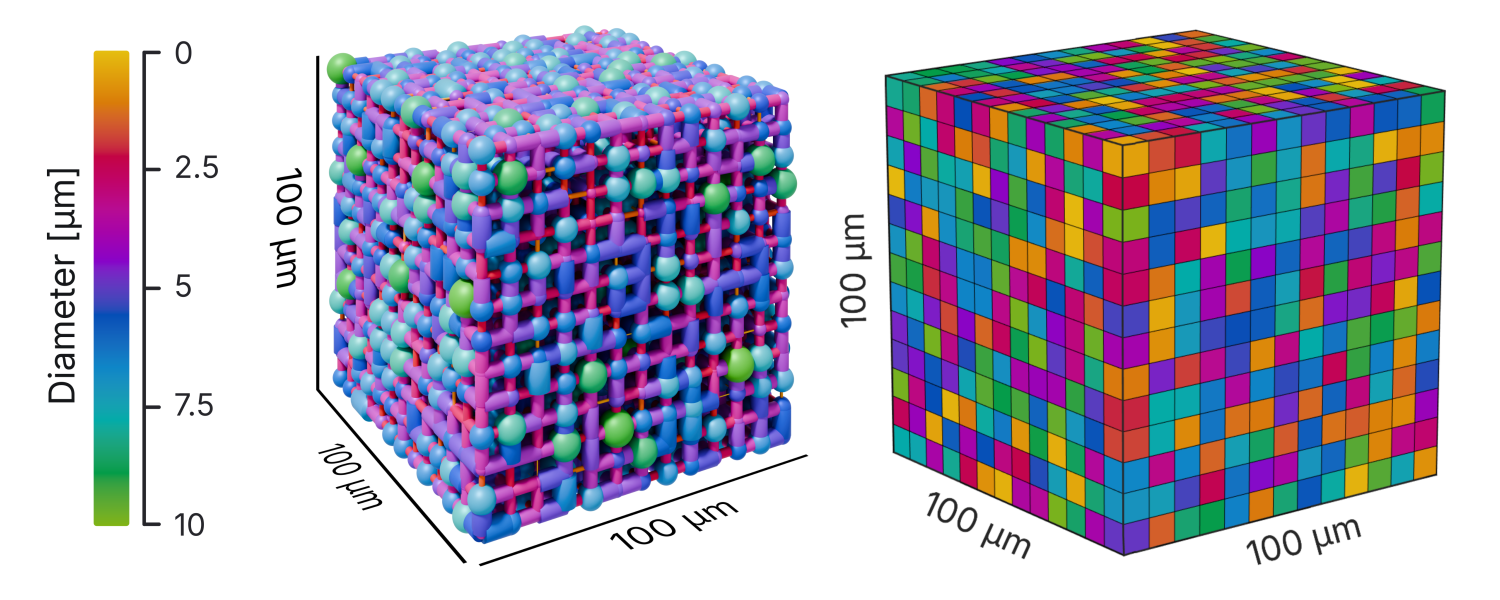

For this reason, we have developed a pore network model for freeze-drying that directly maps the microscale for the first time. The pore network is three-dimensional and irregular. It takes into account the local, pore-scale variation of heat and mass transfer as well as the structure and properties of the body to be dried, with two-way coupling between heat transfer and drying.

Experiments of freezing and subsequent freeze-drying of aqueous sugar solutions in the lyomicroscope have guide the model development. Freezing is very important here because, depending on the cooling rate, it produces the solid structure around ice crystals of different sizes and shapes that are subsequently to be dried. The morphology of the frozen or dried body is evaluated from three-dimensional X-ray tomography data and is used to generate the pore network realistically. The pore network model is finally parameterized and validated with the help of freeze-drying experiments both away from and in the area of structural collapse.

Partners

  • Prof. Dr.-Ing. Petra Först
    Technical University of Munich
    Food Process Engineering
    Weihenstephaner Berg 1
    85354 Freising
    Homepage

Publications

  • Faber, F., Vorhauer-Huget, N., Thomik, M., Gruber, S., Först, P., & Tsotsas, E. (2025). Pore-scale study of coupled heat and mass transfer during primary freeze-drying using an irregular pore network model. Drying Technology. https://doi.org/10.1080/07373937.2024.2407062

  • Gruber, S., Greiner, J., Eppink, A., Thomik, M., Coppens, F., Vorhauer-Huget, N., Tsotsas, E., & Foerst, P. (2024). Pore shape matters – In-situ investigation of freeze-drying kinetics by 4D XCT methods. Food Research International, 193, 114837. https://doi.org/10.1016/j.foodres.2024.114837

  • Gruber, S., Foerst, P., Thomik, M., Tsotsas, E., & Vorhauer-Huget, N. (2023). Pore Scale Investigation of Freeze-Drying. In E. F. Médici & A. D. Otero (Eds.), Album of Porous Media: Structure and Dynamics (pp. 114–114). Springer International Publishing. https://doi.org/10.1007/978-3-031-23800-0_94

  • Thomik, M., Faber, F., Gruber, S., Foerst, P., Tsotsas, E., & Vorhauer-Huget, N. (2023). A Non-Isothermal Pore Network Model of Primary Freeze Drying. Pharmaceutics, 15(8), 2131. https://doi.org/10.3390/pharmaceutics15082131

  • Gruber, S., Thomik, M., Vorhauer-Huget, N., Hans, L., Tsotsas, E., & Foerst, P. (2022). The Influence of Local Microstructure Inhomogeneities on Local Drying Kinetics during Freeze-Drying. Pharmaceutics, 14(10), 2132. https://doi.org/10.3390/pharmaceutics14102132

  • Thomik, M., Gruber, S., Kaestner, A., Foerst, P., Tsotsas, E., & Vorhauer-Huget, N. (2022). Experimental Study of the Impact of Pore Structure on Drying Kinetics and Sublimation Front Patterns. Pharmaceutics, 14(8), 1538. https://doi.org/10.3390/pharmaceutics14081538

  • Thomik, M., Gruber, S., Foerst, P., Tsotsas, E., & Vorhauer-Huget, N. (2022). Determination of 3D pore network structure of freeze-dried maltodextrin. Drying Technology, 40(4), 748–766. https://doi.org/10.1080/07373937.2021.1966030

  • Gruber, S., Vorhauer-Huget, N., & Foerst, P. (2021). In situ micro-computed tomography to study microstructure and sublimation front during freeze-drying. Food Structure, 29, 100213. https://doi.org/10.1016/j.foostr.2021.100213

  • Gruber, S., Först, P., Tsotsas, E., Schulz, M., Vorhauer-Huget, N., Hilmer, M., & Peters, J. (2021). Beschreibung der Sublimationsfront in Schüttgütern mittels Neutronenradiografie und -tomografie. Pharmind - Die Pharmazeutische Industrie, 83(5), 694. https://www.ecv.de/

  • Gruber, S., Vorhauer-Huget, N., Schulz, M., Hilmer, M., Peters, J., Tsotsas, E., & Först, P. (2019). Neutron imaging of freeze drying as a starting point for the development of new mathematical model. MLZ Annual Report 2019. https://mlz-garching.de/

  • Vorhauer-Huget, N., Mannes, D., Hilmer, M., Gruber, S., Strobl, M., Tsotsas, E., & Först, P. (2020). Freeze-Drying with Structured Sublimation Fronts—Visualization with Neutron Imaging. Processes, 8(9), Article 9. https://doi.org/10.3390/pr8091091

  • Först, P., Gruber, S., Schulz, M., Vorhauer, N., & Tsotsas, E. (2020). Characterization of Lyophilization of Frozen Bulky Solids. Chemical Engineering & Technology, 43(5), 789–796. https://doi.org/10.1002/ceat.201900500

  • Hilmer, M., Peters, J., Schulz, M., Gruber, S., Vorhauer, N., Tsotsas, E., & Foerst, P. (2020). Development of an experimental setup for in situ visualization of lyophilization using neutron radiography and computed tomography. Review of Scientific Instruments, 91(1), 014102. https://doi.org/10.1063/1.5126927

  • Gruber, S., Vorhauer, N., Schulz, M., Hilmer, M., Peters, J., Tsotsas, E., & Foerst, P. (2020). Estimation of the local sublimation front velocities from neutron radiography and tomography of particulate matter. Chemical Engineering Science, 211, 115268. https://doi.org/10.1016/j.ces.2019.115268
